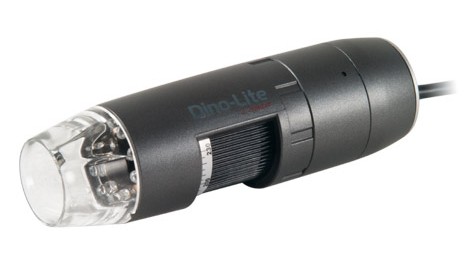

The Dino-Lite Premier AM5116T is a high-quality digital microscope that provides clear 720p resolution imaging. Easy to use, as it can be connected directly to a VGA monitor without any additional software or hardware required. This makes it ideal for use in a wide range of applications, equipped with advanced features including a micro touch button, LED control, and adjustable magnification, ranging from 20x~50x at a distance and up to 200x when used at close range. The Dino-Lite knob can also be locked in place for added stability during use. The Dino-Lite Premier AM5116T is a powerful and perfect tool for anyone in need of a high-quality digital microscope.


Discover the Accurate Precision of a Digital Microscope

The Dino-Lite Premier AM5116T is the ultimate solution for the high-quality digital microscope. You’ll be able to see even the smallest details in sharp clarity imaging. You’ll have all the tools you need to achieve precise results every time. Get ready to experience the power and versatility of the Dino-Lite Premier AM5116T.

Digital Microscope AM5116T Dino-Lite Premier


D-SUB Interface

Ease to use the Dino-Lite on any VGA monitor with D-SUB (15-pin) interface. This is suitable for applications such as inspections, presentations, and training.

Scroll Lock

The scroll lock ensures the focus knob stays at the desired focus or magnification position without worry of unintentional movement.

LED Control

Easiness to switch the LEDs on/off for illumination options by simply touching the MicroTouch for two seconds.

Freeze Frame

Easiness to check important details by freeze the live video simply by touching the MicroTouch on the Dino-Lite.


ModelAM5116T Dino-Lite Premier
InterfaceD-SUB (15-pin)
Product Resolution720p
Magnification Rate20x~50x, 200x
SensorColor CMOS
Frame RateUp to 60fps
Microtouch LED On/Off – Tap and hold for two seconds
Freeze / unfreeze frame – Tap
Lighting8 White LEDs
System RequirementMonitor with DVI interface supporting 720p video input
Unit Dimension10.5cm (H) x 3.2cm (D)
Package Dimension16cm (L) x 16cm (w) x 6cm (H)
Unit Weight105g

Information About Working Distance and Field of View


M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field      Unit = mm
