The Dino-Lite AM7515MT4A is an advanced and exciting microscope sure to spark your curiosity. With a powerful 5MP camera and a magnification range of 415x to 470x, this microscope is capable of delivering incredibly detailed and clear images. The built-in coaxial illumination and Flexible LED Control (FLC) allow you to switch between brightfield and coaxial illumination modes with ease, giving you the flexibility to observe your specimens in the best possible light. The Dino-Lite AM7515MT4A also comes with the user-friendly DinoCapture 2.0 software, which is specifically designed for Windows computers. This software provides a range of impressive features, such as Automatic Magnification Reading (AMR), calibration, measurement, image capture, and video recording, making it an ideal tool for scientists or researchers.



Share

The Perfect Inspection Tool for Material Analysis and Electronics

Bring hidden details with the Dino-Lite AM7515MT4A – The ideal inspection tool for material analysis and electronics. With an innovative coaxial illumination technique, this device brings clarity to the smallest and most difficult-to-see details, making it the go-to choice for professionals.

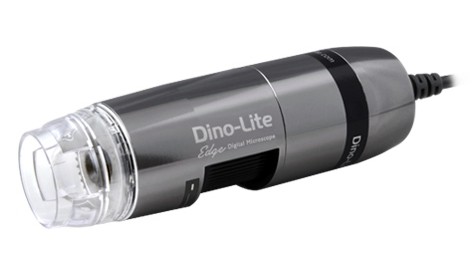

Digital Microscope AM7515MT4A Dino-Lite Edge

Features

5.0 Megapixels

An unmatched 5.0 Megapixels sensor, allows for the transmission of a sharp image with a resolution of up to 2592×1944 without compression.

USB 2.0

Digital microscopes allow easy recording and sharing of observations in the office or out in the field with a compatible PC or MAC.

Brightfield/Darkfield

With built-in brightfield and darkfield illumination, users have more flexibility to view targets under different types of lighting configurations.

Flexible LED Control (FLC)

Provides lighting adjustment options including intensity settings to the four LED quadrants, as well as the aim point laser and the ability to turn on or off LED by quadrant.

FLC

Automatic Magnification Reading (AMR)

Automatic Magnification Reading displays the current magnification on the screen with the included software for Windows or Mac OS. AMR features remove the hassle of stopping your work to check the magnification before performing a measurement.

Scroll Lock

The scroll lock ensures the focus knob stays at the desired focus or magnification position without worry of unintentional movement.

Interchangeable Front Caps

The interchangeable front caps are designed to be used with Dino-Lite Edge and EdgePLUS series models. The caps provide additional versatility to Dino-Lite digital microscope applications.

N3C-C / Close Cap

This cap protects the lens and LED lights from dust, debris, or moisture.

N3C-E / Extended Open Cap (12.5mm length)

This 12.5mm cap eases finding and holding a fixed focus when using the Dino-Lite in handheld mode. This cap is compatible with standard and wide-field-of-view models.

N3C-O / Open Cap (9.5mm length)

This 9.5mm cap eases finding and holding a fixed focus when using the Dino-Lite in handheld mode.

Specification

ModelAM7515MT4A Dino-Lite Edge
InterfaceUSB 2.0
Product Resolution5.0M pixels (2592×1944)
Magnification Rate415x~470x
Frame Rate10fps in 5MP/3MP/2MP, MJPEG
25fps in 1.3MP, MJPEG
30fps in VGA, MJPEG
Save FormatsImage:
DinoCapture2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
DinoXcope: PNG, JPEG
Video:
DinoCapture2.0: WMV, FLV, SWF
DinoXcope: MOV
Lighting8 White LEDs
MicrotouchYes
Operating System SupportedWindows 7/8/10/11
macOS 10.14 or later
System Requirements‧ Intel Core2 Duo @ 2.20 GHz/AMD Athlon X2 Dual Core BE-2400 (2.3GHz)
‧ 20GB available HD space
‧ 2GB available RAM or more
‧ 512MB video card or more
‧ CD-ROM drive for installation
‧ USB 2.0
Calibration FunctionYes
Measurement FunctionYes
Unit Dimension10.7cm (H) x 3.2cm (D)
Unit Weight139g

Information About Working Distance and Field of View

MWDFOV (x)FOV (y)DOF
4156.00.9510.697
4207.30.9260.680
4308.00.9050.664
4408.80.8840.648
45010.00.8670.636
46011.30.8470.621
47011.80.8280.6080.04

M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field      Unit = mm
