The Dino-Lite Edge Series AM5218MZT is a high-performance microscope designed for professionals who require the best in imaging quality and reliability. AM5218MZT connects easily to HDTVs or LCD monitors through DVI or HD interfaces and delivers 720p HD images with a magnification range of 20x~220x that are ideal for various applications. The microscope also features an adjustable polarizer, which enhances image resolution, and the micro touch feature, which allows you to freeze the live video for closer examination. The AM5218MZT also has a scroll lock function for added convenience and ease of use. With the advanced features, you can be sure to get the best results every time.

Discover Unmatched Clarity and Detail with the Dino-Lite AM5218MZT Edge Microscope

The Dino-Lite AM5218MZT Edge is a high-quality microscope that provides real-time images with exceptional clarity and detail, giving you an HD 720p display of even the smallest objects. Invest in the Dino-Lite AM5218MZT Edge for an all-in-one imaging solution that provides real-time, high-quality results every time.

Digital Microscope AM5218MZT Dino-Lite Edge

8 White LEDs


HDMI Interface

Ease to use the Dino-Lite on any VGA monitor with D-SUB (15-pin) interface. This is suitable for applications such as inspections, presentations, and training.

Adjustable Polarizer

Polarization can be switched on/off or adjusted to allow full or half polarization to control glare and helps to reveal more detail or to enhance the contrast on the surface by reducing or eliminating the reflections.

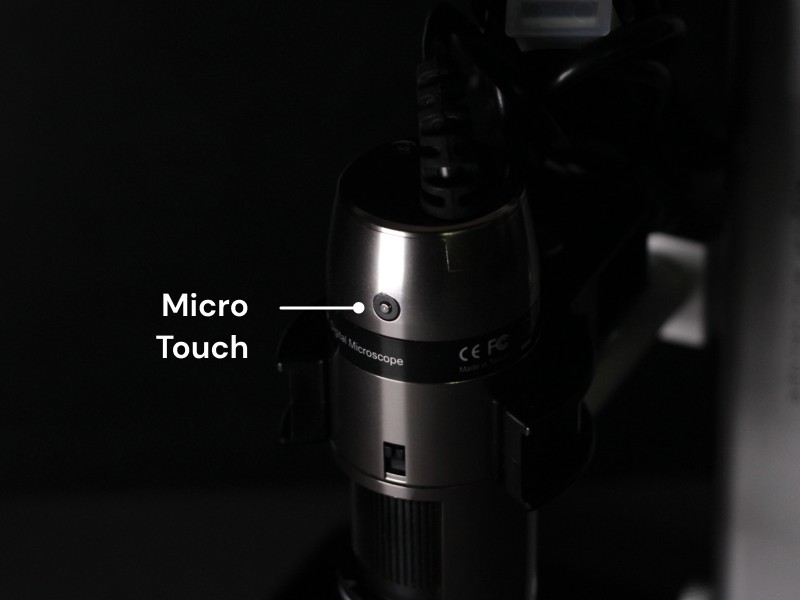

MicroTouch Shutter Button

Effortlessly freeze or unfreeze images with a simple tap and control LED lighting with a longer tap.

Scroll Lock

The scroll lock ensures the focus knob stays at the desired focus or magnification position without worry of unintentional movement.

Interchangeable Front Caps

The interchangeable front caps are designed to be used with Dino-Lite Edge and EdgePLUS series models. The caps provide additional versatility to Dino-Lite digital microscope applications.

N3C-C / Close Cap

This cap protects the lens and LED lights from contamination by dust, debris, or moisture.

N3C-D / Diffuser Cap

This is a translucent cap that partially softens the LED light.

N3C-D2 / Opal Diffuser Cap

This cap softens and evenly distributes the LED light.

N3C-E / Extended Open Cap (12.5mm length)

This 12.5mm cap eases the task of finding and holding a fixed focus when using the Dino-Lite in handheld mode. This cap is compatible with standard and wide-field-of-view models.

N3C-L / Long Cap (30mm length)

This cap assists users to find focus quickly at low magnification when it touches the surface.

N3C-O / Open Cap (9.5mm length)

This 9.5mm cap eases the task of finding and holding a fixed focus when using the Dino-Lite in handheld mode.

N3C-S / Sidelight Cap

Use the sidelight cap to light from the side for highlighting the texture and depth of targets at short working distances.


Model AM5218MZT Dino-Lite Edge
Interface HDMI
Product Resolution 720p
Magnification Rate 20x~220x
Sensor Color CMOS
Frame Rate 60fps
Microtouch  Yes
Lighting 8 White LEDs
Polarizer Yes
Unit Dimension 10.5cm (H) x 3.2cm (D)
Unit Weight 125g

Information About Working Distance and Field of View

M WD FOV (x) FOV (y) DOF
20 60.2 19.5 11.7 2.5
30 33.5 13 7.8 1.8
40 20.9 9.8 5.9 1.5
50 13.9 7.8 4.7
60 9.7 6.5 3.9
70 7.1 5.6 3.4 1.0
80 5.5 4.9 3
90 4.5 4.3 2.6
100 4.1 3.9 2.3
110 4 3.6 2.1
120 4.1 3.3 2
130 4.5 3 1.8
140 5 2.8 1.7
150 5.6 2.6 1.6
160 6.3 2.4 1.5
170 7.1 2.3 1.4
180 8 2.2 1.3
190 8.9 2.1 1.2
200 9.9 2 1.2
210 10.9 1.9 1.1
220 11.9 1.8 1.1 0.1

M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field      Unit = mm
