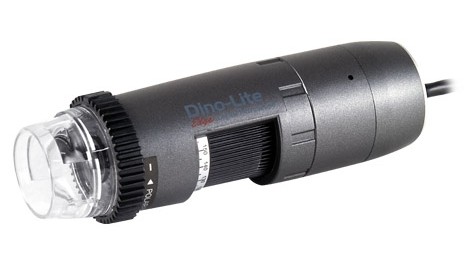

Digital Microscope AM5216ZTL Dino-Lite Edge

Discover the latest digital microscope technology with the Dino-Lite AM5216ZTL offers a long working distance feature and connects directly to a VGA monitor via a VGA (D-SUB) connector. Enjoy crystal clear images with 60 frames per second at 720p resolution. The built-in adjustable polarizer eliminates unwanted glare and reflection. Simply connect directly to a monitor or TV with a VGA connection for seamless observation.

SKU AM5216ZTL Categories 720p, Interchangeable Caps, 140x, MicroTouch, D-SUB, Adjustable Polarizer, White, INTERFACE, Magnification, Resolution, LED, FEATURES, Long Working Distance

Description

Discover Unmatched Clarity with the Dino-Lite AM5216ZTL

Name: Digital Microscope D-SUB Dino-Lite AM5216ZTL
SKU: AM5216ZTL
Price: 980 SGD
Availability: InStock

Observe your objects like never before with the Dino-Lite AM5216ZTL digital microscope. With a long working distance of up to 15cm, this model allows you to see the tiniest details with clarity. Plus, with direct VGA connectivity for a system-friendly experience. Upgrade your observation with Dino-Lite AM5216ZTL.

D-SUB

720p

10x~140x

8 White LEDs

Features

D-SUB Interface

Ease to use the Dino-Lite on any VGA monitor with D-SUB (15-pin) interface. This is suitable for applications such as inspections, presentations, and training.

Long Working Distance (LWD)

The Long Working Distance feature provides more working space between the object and the microscope, ideal for applications such as repair or assembly.

Adjustable Polarizer

Polarization can be switched on/off or adjusted to allow full or half polarization to control glare and helps to reveal more detail or to enhance the contrast on the surface by reducing or eliminating the reflections.

MicroTouch Shutter Button

Effortlessly freeze or unfreeze images with a simple tap and control LED lighting with a longer tap.

Adaptable Cap Design

Provide superior image quality and a high level of flexibility due to the adaptable cap design, also remove the front cap provides greater working distance and access to the full magnification range.

	N3C-C / Close Cap This cap protects the lens and LED lights from contamination by dust, debris, or moisture.
	N3C-D / Diffuser Cap This is a translucent cap that partially softens the LED light.
	N3C-D2 / Opal Diffuser Cap This cap softens and evenly distributes the LED light.
	N3C-E / Extended Open Cap (12.5mm length) This 12.5mm cap eases the task of finding and holding a fixed focus when using the Dino-Lite in handheld mode. This cap is compatible with standard and wide-field-of-view models.
	N3C-L / Long Cap (30mm length) This cap assists users to find focus quickly at low magnification when it touches the surface.
	N3C-O / Open Cap (9.5mm length) This 9.5mm cap eases the task of finding and holding a fixed focus when using the Dino-Lite in handheld mode.
	N3C-S / Sidelight Cap Use the sidelight cap to light from the side for highlighting the texture and depth of targets at short working distances.

Specification

Model	AM5216ZTL Dino-Lite Edge
Interface	D-SUB
Product Resolution	720p
Magnification Rate	10x~140x
Sensor	Color CMOS
Frame Rate	60fps
Microtouch	LED On/Off – Tap and hold for two seconds Freeze/unfreeze frame – Tap
Lighting	8 White LEDs
Polarizer	Yes
Unit Dimension	10.5cm (H) x 3.2cm (D)
Package Dimension	16cm(L) x 16cm(W) x 6cm(H)
Unit Weight	105g

Information About Working Distance and Field of View

M	WD	FOV (x)	FOV (y)	DOF
10	234.5	39.0	31.5	20.0
20	112.5	19.5	15.6	4.5
30	72.5	13.0	10.4	3.1
40	54.5	9.8	7.8	1.8
50	43.5	7.8	6.2	1.2
60	37.5	6.5	5.2	0.9
70	33.7	5.6	4.5	0.6
80	31.3	4.9	3.9	0.5
90	29.9	4.3	3.5	0.37
100	29.2	3.9	3.1	0.28
110	29.1	3.5	2.8	0.22
120	29.3	3.3	2.6	0.17
130	29.8	3.0	2.4	0.12
140	30.5	2.8	2.2	0.09

M = magnification rate WD = working distance (without front cap) FOV = field of view DOF= depth of field Unit = mm
