Discover the ultimate view experience with the Dino-Lite Edge AM4115TL-FVW Digital Microscope. With switchable white and UV LED lighting and a filter for natural color imaging, this model offers exceptional image quality with its 1.3 Megapixels sensor and professional-level design. The AM4115TL-FVW provides versatility with its adaptable cap design and long working distances, making it ideal for a wide range of applications. Get closer to the details and achieve greater precision with the Dino-Lite Edge AM4115TL-FVW.



Share

Upgrade Your Imaging with the AM4115TL-FVW Dino-Lite Edge

Unlock the full potential of your imaging with the AM4115TL-FVW – the ultimate solution for long working distances. With an innovative combination of 395nm UV and white lights, switchable by software, the AM4115TL-FVW delivers exceptional image quality. Get ready to see things in a new light and discover the limitless possibilities of the AM4115TL-FVW from Dino-Lite.

Dino-Lite AM4115TL-FVW

Features

PC/MAC Compatibility

Get experience with easy recording and sharing of observations in the office or in the field with a compatible PC or MAC with a USB 2.0 port. Conveniently capture and modify photos with the bundled software.

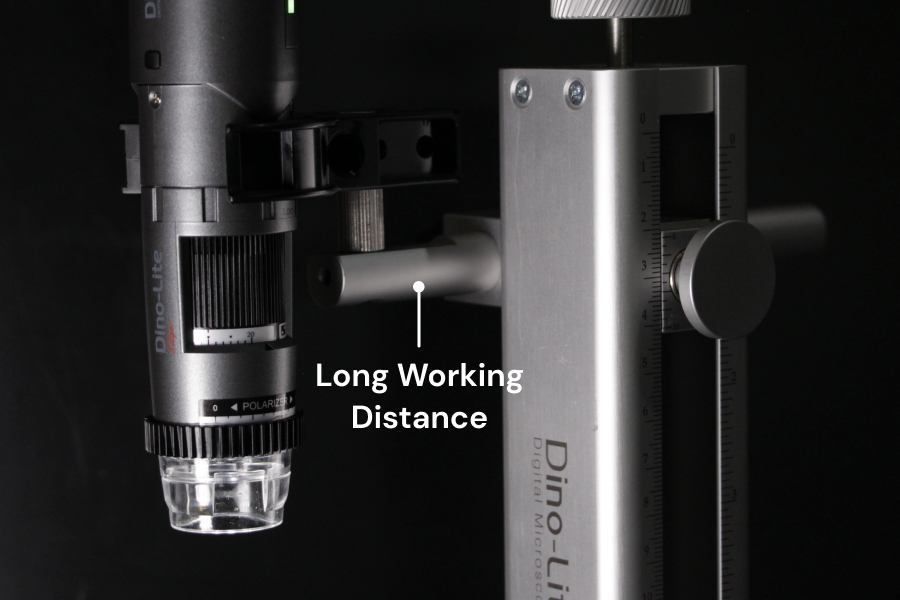

Long Working Distance (LWD)

The Long Working Distance feature provides more working space between the object and the microscope, ideal for applications such as repair or assembly.

MicroTouch Shutter Button

The MicroTouch feature gives users the option of taking a picture right from the scope itself and was designed to minimize image blur while taking a picture with the microscope. Great for those moments when you need to take a picture but have no access to the computer.

Adaptable Cap Design

Provide superior image quality and a high level of flexibility due to the adaptable cap design, also remove the front cap provides greater working distance and access to the full magnification range.

N3C-C / Close Cap

This cap protects the lens and LED lights from dust, debris, or moisture.

N3C-D / Diffuser Cap

This is a translucent cap that partially softens the LED light.

N3C-D2 / Opal Diffuser Cap

This cap softens and evenly distributes the LED light.

N3C-E / Extended Open Cap (12.5mm length)

This 12.5mm cap eases finding and holding a fixed focus when using the Dino-Lite in handheld mode. This cap is compatible with standard and wide-field-of-view models.

N3C-L / Long Cap (30mm length)

This cap assists users to find focus quickly at low magnification when it touches the surface.

N3C-OB / Open Cap

This black cap blocks ambient light for clearer observations of fluorescence emissions.

N3C-S / Sidelight Cap

Use the sidelight cap to light from the side for highlighting the texture and depth of targets at short working distances.

Specification

ModelAM4115TL-FVW Dino-Lite Edge
InterfaceUSB 2.0
Product Resolution1.3M pixels (SXGA)
Magnification Rate10x~140x
SensorColor CMOS
Frame RateUp to 30fps
Save FormatsImage:
DinoCapture 2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
DinoXcope: PNG, JPEGMovie:
DinoCapture 2.0: WMV, FLV, SWF
DinoXcope: MOV
Lighting4 White and 4 UV (395nm) LED lights switched by software
MicrotouchTouch-sensitive trigger on the microscope for taking pictures
Operating System SupportedWindows XP 7/8/10/11
macOS 10.14 or later
Calibration FunctionYes
Measurement FunctionYes
Unit Dimension10.5cm (H) x 3.2cm (D)
Package Dimension16cm (L) x 16cm (W) x 6cm (H)
Unit Weight100g

Information About Working Distance and Field of View

MWDFOV (x)FOV (y)DOF
10234.539.031.212
20112.519.515.64.5
3072.513.010.43.1
4054.59.87.81.8
5043.57.86.21.2
6037.56.55.20.9
7033.75.64.50.6
8031.34.93.90.5
9029.94.33.50.37
10029.23.93.10.28
11029.13.52.80.22
12029.33.32.60.17
13029.83.02.40.12
14030.52.82.20.09

M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field      Unit = mm
