The Dino-Lite Edge AF4515ZT4 is a top-of-the-line digital microscope equipped with a magnification range of 400x~470x and Automatic Magnification Reading (AMR) technology. With state-of-the-art lens design ensures exceptional image quality with stunning sharpness, minimal aberration, and minimal vignetting for unmatched observation results.



Share

Get Accurate Results Every Time with AMR Features

Experience ease and accuracy in capturing and storing images with the Dino-Lite Edge AM4515ZT4, featuring automatic magnification reading (AMR) capabilities. A convenient tool for situations when manual reading is difficult or impossible.

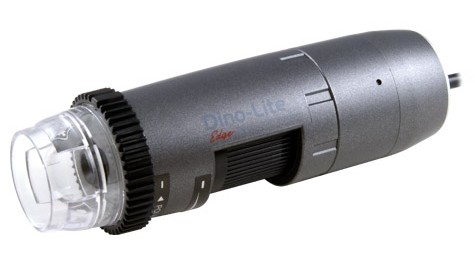

Dino-Lite AM4515ZT4

Features

Automatic Magnification Reading (AMR)

Automatic Magnification Reading displays the current magnification on the screen with the included software for Windows or Mac OS. AMR features remove the hassle of stopping your work to check the magnification before performing a measurement.

amr-1

Adjustable Polarizer

Polarization can be switched on/off or adjusted to allow full or half polarization to control glare and helps to reveal more detail or to enhance the contrast on the surface by reducing or eliminating the reflections.

Fine Focus Dial

This specially designed dial improves the user experience associated with making fine focus adjustments under high magnification.

MicroTouch Shutter Button

The MicroTouch feature gives users the option of taking a picture right from the scope itself and was designed to minimize image blur while taking a picture with the microscope. Great for those moments when you need to take a picture but have no access to the computer.

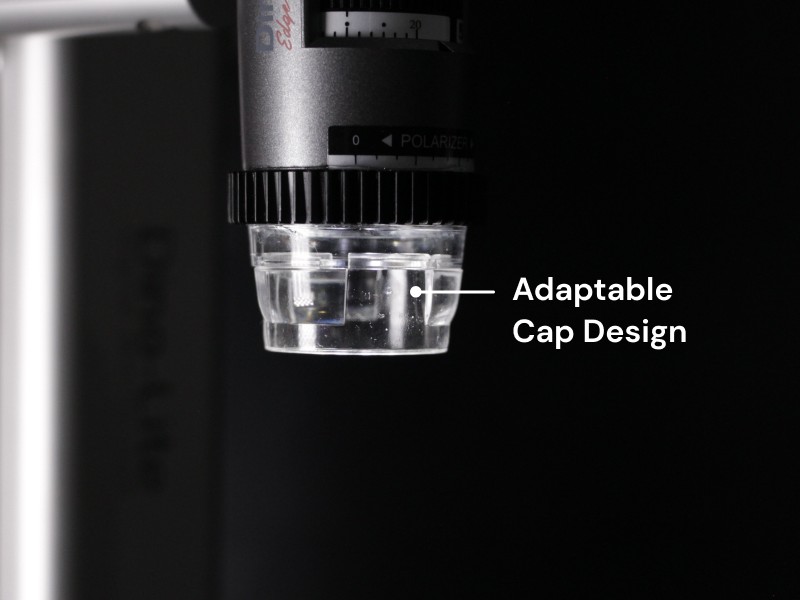

Adaptable Cap Design

Provide superior image quality and a high level of flexibility due to the adaptable cap design, also remove the front cap provides greater working distance and access to the full magnification range.

N3C-C / Close Cap

This cap protects the lens and LED lights from contamination by dust, debris, or moisture.

N3C-E / Extended Open Cap (12.5mm length)

This 12.5mm cap eases the task of finding and holding a fixed focus when using the Dino-Lite in handheld mode. This cap is compatible with standard and wide-field-of-view models.

N3C-O / Open Cap (9.5mm length)

This 9.5mm cap eases the task of finding and holding a fixed focus when using the Dino-Lite in handheld mode.

Specification

ModelAM4515ZT4 Dino-Lite Edge
InterfaceUSB 2.0
Product Resolution1.3M pixels (SXGA)
Magnification400x~470x
Frame RateUp to 30fps
SensorColor CMOS
Save FormatsImage:
DinoCapture 2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
DinoXcope: PNG, JPEGMovie:
DinoCapture 2.0: WMV, FLV, SWF
DinoXcope: MOV
MicrotouchTouch-sensitive trigger on the microscope for taking pictures
Lighting8 White LED
Operating System SupportedWindows XP 7/8/10/11
macOS 10.14 or later
Calibration FunctionYes
Measurement FunctionYes
Unit Dimension10.3cm (H) x 3.2cm (D)
Package Dimension16 cm (L) x 16 cm (W) x 6 cm (H)
Unit Weight100g

Information About Working Distance and Field of View

MWDFOV (x)FOV (y)DOF
4005.10.9710.713
4106.00.9510.697
4207.30.9260.680
4308.00.9050.664
4408.80.8840.648
45010.00.8670.636
46011.30.8470.621
47011.80.8280.6080.04

M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field      Unit = mm
