Discover the imaging high-quality with the Dino-Lite EdgePLUS AM4917MZTL digital microscope. With its advanced features EDOF, EDR, DPQ, eFLC, and AMR, you can get the results you need. Equipped with long working distance features, this microscope is the perfect tool for a wide range of applications and offers the flexibility to observe your objects with ease. Get ready to experience the best in the digital microscope with the Dino-Lite EdgePLUS AM4917MZTL.


Discover New Heights of Detail with the Dino-Lite EdgePLUS AM4917MZTL Digital Microscope

The Dino-Lite EdgePLUS AM4917MZTL digital microscope is equipped with a longer working distance and offers superior color reproducibility, image quality, and clarity. All the advanced features combined into a single digital microscope, make it an excellent choice for users with high standards.

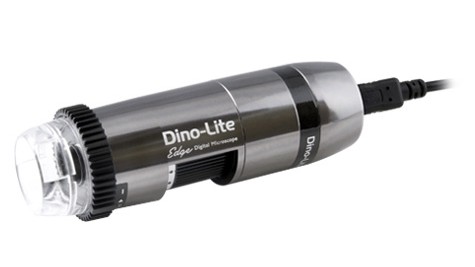

Dino-Lite AM4917MZTL

Features

1.3 Megapixels

The advanced CMOS image sensor can transmit crisp images at 30 FPS with resolutions up to 1280×960.

Long Working Distance (LWD)

The Long Working Distance feature provides more working space between the object and the microscope, ideal for applications such as repair or assembly.

Depth Acquisition (DPQ)

The depth Acquisition feature provides delicate focus control and allows for the acquisition of more useful depth information.

Extended Depth of Field (EDOF)

Capture mode can take several pictures at different levels of focus and stack them into a clear image automatically within one click.

Extended Depth of Field (EDOF)

Extended Dynamic Range (EDR)

Observed high contrast or reflective surfaces, the EDR can help to reveal the details of dark or bright areas by stacking images taken at different exposure levels.

Auto Magnification Reading (AMR)

Automatic Magnification Reading displays the current magnification on the screen with the included software for Windows or Mac OS. AMR features remove the hassle of stopping your work to check the magnification before performing a measurement.

​Enhanced Flexible LED Control (eFLC)

Improved FLC capabilities, eFLC can adjust the light intensity on two assigned groups of LED quadrants, each with 32-levels light intensity adjustments.

FLC

Adjustable Polarizer

Polarization can be switched on/off or adjusted to allow full or half polarization to control glare and helps to reveal more detail or to enhance the contrast on the surface by reducing or eliminating the reflections.

Scroll Lock

The scroll lock ensures the focus knob stays at the desired focus or magnification position without worry of unintentional movement.

Interchangeable Front Caps

The interchangeable front caps are designed to be used with Dino-Lite Edge and EdgePLUS series models. The caps provide additional versatility to Dino-Lite digital microscope applications.

N3C-C / Close Cap

This cap protects the lens and LED lights from dust, debris, or moisture.

N3C-D / Diffuser Cap

This is a translucent cap that partially softens the LED light.

N3C-D2 / Opal Diffuser Cap

This cap softens and evenly distributes the LED light.

N3C-E / Extended Open Cap (12.5mm length)

This 12.5mm cap eases finding and holding a fixed focus when using the Dino-Lite in handheld mode. This cap is compatible with standard and wide-field-of-view models.

N3C-L / Long Cap (30mm length)

This cap assists users focus quickly at low magnification when it touches the surface.

N3C-O / Open Cap (9.5mm length)

This 9.5mm cap eases finding and holding a fixed focus when using the Dino-Lite in handheld mode.

N3C-S / Sidelight Cap

Use the sidelight cap to light from the side for highlighting the texture and depth of targets at short working distances.

Specification

Model AM4917MZTL Dino-Lite  EdgePLUS
Interface USB 2.0
Product Resolution 1.3M pixels (1280×960)
Magnification 10x~140x
Frame Rate 30fps in 1.3MP, MJPEG
30fps in VGA, MJPEG
Saving Format Image:
DinoCapture 2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
DinoXcope: PNG, JPEGVideo:
DinoCapture 2.0: WMV, FLV, SWF
DinoXcope: MOV
Lighting 8 white LEDs
Polarizer Yes
Microtouch Yes
Operating System Supported Windows 7/8/10/11
macOS 10.14 or later (EDOF/EDR/DPQ are NOT controllable on macOS)
Calibration Function Yes
Measurement Function Yes
Unit Dimension 10.5cm (H) x 3.3cm (D)
Unit Weight 130g

Information About Working Distance and Field of View

M WD FOV (x) FOV (y) DOF
10 237.6 39.1 29 24.61
20 115.0 19.5 14.7 6.68
30 75.4 13 9.8 3.21
40 56.7 9.8 7.3 1.94
50 46.4 7.8 5.9 1.33
60 40.1 6.5 4.9 0.98
70 36.3 5.6 4.2 0.76
80 34.0 4.9 3.7 0.62
90 32.6 4.3 3.3 0.51
100 31.9 3.9 2.9 0.44
110 31.7 3.6 2.7 0.38
120 31.9 3.3 2.4 0.33
130 32.4 3 2.3 0.3
140 33.2 2.8 2.1 0.27

M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field      Unit = mm
