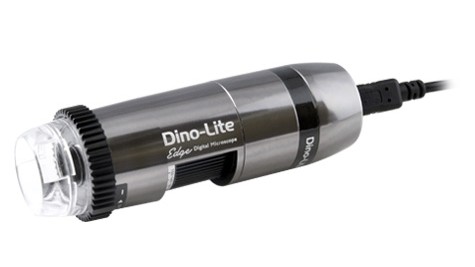

A special category within the Long Working Distance (LWD) range on Dino-Lite EdgePLUS, the AM4117MZTL has a magnification range of 10-140x, a 1.3-megapixel camera, and a USB 2.0 connection at 30fps. This digital microscope offers superb image quality, clarity, and color reproduction in a robust, compact, and appealing metal housing.



Share

Experience High-Quality Images with Unmatched Colors and Contrast

Unlock the power of distance observation with Dino-Lite 1.3MP EdgePLUS AM4117MZTL, which offers high-quality images guaranteed with superior color and contrast rendering.

Features

1.3 Megapixels

The advanced CMOS image sensor can transmit crisp images at 30 FPS with resolutions up to 1280×960.

Long Working Distance (LWD)

The Long Working Distance feature provides more working space between the object and the microscope, ideal for applications such as repair or assembly.

​Enhanced Flexible LED Control (eFLC)

Improved FLC capabilities, eFLC can adjust the light intensity on two assigned groups of LED quadrants, each with 32-levels light intensity adjustments.

FLC

Adjustable Polarizer

Polarization can be switched on/off or adjusted to allow full or half polarization to control glare and helps to reveal more detail or to enhance the contrast on the surface by reducing or eliminating the reflections.

Scroll Lock

The scroll lock ensures the focus knob stays at the desired focus or magnification position without worry of unintentional movement.

Interchangeable Front Caps

The interchangeable front caps are designed to be used with Dino-Lite Edge and EdgePLUS series models. The caps provide additional versatility to Dino-Lite digital microscope applications.

N3C-C / Close Cap

This cap protects the lens and LED lights from dust, debris, or moisture.

N3C-D / Diffuser Cap

This is a translucent cap that partially softens the LED light.

N3C-D2 / Opal Diffuser Cap

This cap softens and evenly distributes the LED light.

N3C-E / Extended Open Cap (12.5mm length)

This 12.5mm cap eases finding and holding a fixed focus when using the Dino-Lite in handheld mode. This cap is compatible with standard and wide-field-of-view models.

N3C-L / Long Cap (30mm length)

This cap assists users to find focus quickly at low magnification when it touches the surface.

N3C-O / Open Cap (9.5mm length)

This 9.5mm cap eases finding and holding a fixed focus when using the Dino-Lite in handheld mode.

N3C-S / Sidelight Cap

Use the sidelight cap to light from the side for highlighting the texture and depth of targets at short working distances.

Specification

ModelAM4117MZTL Dino-Lite EdgePLUS
InterfaceUSB 2.0
Product Resolution1.3M pixels (1280×960)
Magnification10x~140x
Frame Rate30fps in 1.3MP, MJPEG
30fps in VGA, MJPEG
Save FormatsImage:
DinoCapture2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
DinoXcope: PNG, JPEGVideo:
DinoCapture2.0: WMV, FLV, SWF
DinoXcope: MOV
Lighting8 white LEDs
PolarizerYes
MicrotouchYes
Operating System SupportedWindows 7/8/10/11
macOS 10.14 or later
Calibration FunctionYes
Measurement FunctionYes
Unit Dimension10.5cm (H) x 3.3cm (D)
Unit Weight130g


Information About Working Distance and Field of View

MWDFOV (x)FOV (y)DOF
10237.639.12924.61
20115.019.514.76.68
3075.4139.83.21
4056.79.87.31.94
5046.47.85.91.33
6040.16.54.90.98
7036.35.64.20.76
8034.04.93.70.62
9032.64.33.30.51
10031.93.92.90.44
11031.73.62.70.38
12031.93.32.40.33
13032.432.30.3
14033.22.82.10.27

M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field      Unit = mm
