Explore the wonders of micro and macro observation with the 1.3MP EdgePLUS AM4117MZTW wide field-of-view microscope. With a magnification range of 10x~50x and a high-sensitivity sensor, you can get crystal-clear images with unmatched quality.



Share

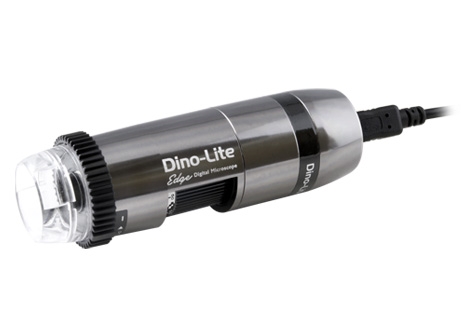

Wide Field of View Digital Microscope

The Dino-Lite EdgePLUS AM4117MZTW Wide Field of View (WFOV) microscope features cutting-edge micro and macro observation capabilities, this powerful tool delivers crystal-clear images that reveal every detail. The Dino-Lite EdgePLUS AM4117MZTW is the perfect choice for any user who demands the highest level of clarity and precision.

Features

1.3 Megapixels

The advanced CMOS image sensor can transmit crisp images at 30 FPS with resolutions up to 1280×960.

Wide Field of View (WFOV)

The Wide Field of View feature is designed to provide large FOV at a reasonable working distance while keeping a crisp image for macro-view observations.

Enhanced Flexible LED Control (eFLC)

Improved FLC capabilities, eFLC can adjust the light intensity on two assigned groups of LED quadrants, each with 32-levels light intensity adjustments.

FLC

Adjustable Polarizer

Polarization can be switched on/off or adjusted to allow full or half polarization to control glare and helps to reveal more detail or to enhance the contrast on the surface by reducing or eliminating the reflections.

Scroll Lock

The scroll lock ensures the focus knob stays at the desired focus or magnification position without worry of unintentional movement.

Interchangeable Front Caps

The interchangeable front caps are designed to be used with Dino-Lite Edge and EdgePLUS series models. The caps provide additional versatility to Dino-Lite digital microscope applications.

N3C-C / Close Cap

This cap protects the lens and LED lights from dust, debris, or moisture.

N3C-D / Diffuser Cap

This is a translucent cap that partially softens the LED light.

N3C-D2 / Opal Diffuser Cap

This cap softens and evenly distributes the LED light.

N3C-E / Extended Open Cap (12.5mm length)

This 12.5mm cap eases finding and holding a fixed focus when using the Dino-Lite in handheld mode. This cap is compatible with standard and wide-field-of-view models.

N3C-L / Long Cap (30mm length)

This cap assists users to find focus quickly at low magnification when it touches the surface.

N3C-O / Open Cap (9.5mm length)

This 9.5mm cap eases finding and holding a fixed focus when using the Dino-Lite in handheld mode.

N3C-S / Sidelight Cap

Use the sidelight cap to light from the side for highlighting the texture and depth of targets at short working distances.

Specification

ModelAM4117MZTW Dino-Lite EdgePLUS
InterfaceUSB 2.0
Product Resolution1.3M pixels (1280×960)
Magnification10x~50x
Frame Rate30fps in 1.3MP, MJPEG
30fps in VGA, MJPEG
Save FormatsImage:
DinoCapture2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
DinoXcope: PNG, JPEGVideo:
DinoCapture2.0: WMV, FLV, SWF
DinoXcope: MOV
Lighting8 white LEDs
PolarizerYes
MicrotouchYes
Operating System SupportedWindows 7/8/10/11
macOS 10.14 or later
Calibration FunctionYes
Measurement FunctionYes
Unit Dimension10.5cm (H) x 3.3cm (D)
Unit Weight90g

Information About Working Distance and Field of View

T Zone
MWDFOV (x)FOV (y)DOF
5014863
40421075
306413109
20119201521
15182262039

W Zone
MWDFOV (x)FOV (y)DOF
301113106
2025201513
1539262022
1068392951
51567859250

M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field      Unit = mm
