Innovate your ear examination with the Dino-Lite AM4113-EUT EarScope. Compact, safe, and equipped with a high-resolution 1.3-megapixel sensor and 55x~90x magnification, this EarScope delivers clear and bright images every time. Comes with disposable specula of 3, 4, and 5 mm and built-in LED lights, the AM4113-EUT is ready for use with its USB connection and independent functioning. Easily view, store, and share images on a computer screen, compatible with Windows and MacOS, making diagnosis and patient communication a breeze.

Transform Your Ear Examination with the Dino-Lite Digital Otoscope

Upgrade your ear examination with the Dino-Lite AM4113-EUT EarScope. Whether you’re in general practice, Audiology, or an ear, nose, and throat specialist, this digital otoscope is an indispensable tool. With 55x~90x magnification and built-in LED lights, you can quickly identify issues such as inflammation, clogged earwax, or fluid behind the eardrum. Enhance your observation with the convenience and accuracy of the Dino-Lite AM4113-EUT EarScope.

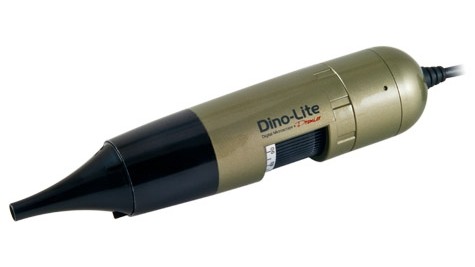

Dino-Lite AM4113-EUT


Enhanced 1.3 Megapixels

Observes object with accurate color reproductions and retains details under low lighting with the optimum resolution for detailed live previews and captured images.

USB 2.0

Digital microscopes allow easy recording and sharing of observations in the office or out in the field with a compatible PC or MAC.


Model AM4113-EUT Dino-Lite Premier
Interface USB 2.0
Product Resolution 1.3M pixels (SXGA)
Magnification Rate 55x~90x
Sensor Color CMOS
Frame Rate Up to 30fps
Save Format Image:
DinoXcope: PNG, JPEGMovie:
DinoCapture2.0: WMV, FLV, SWF
DinoXcope: MOV
Lighting 6 white LED lights for illumination
Microtouch Touch-sensitive trigger on the microscope for taking pictures
Operating System Supported Windows XP 7/8/10/11
macOS 10.14 or later
Unit Dimension 11.94cm (H) x 3.2cm (D)
Package Dimension 16cm (L) x 16cm (w) x 6cm (H)
Unit Weight 90g

Information About Working Distance and Field of View

M WD FOV (x) FOV (y)
20 151.0 19.6 15.6
30 101.0 13.0 10.4
40 77.2 9.8 7.8
50 64.1 7.8 6.3
60 56.2 6.5 5.2
70 51.3 5.6 4.5
80 48.3 4.9 3.9
90 46.6 4.3 3.5

M = magnification rate      WD = working distance      FOV = field of view      DOF= depth of field      Unit = mm
