Get the full potential of your microscope with the Dino-Lite AM4113-FI2T. Equipped with a high-resolution 1.3-megapixel sensor, this USB 2.0 model offers a flexible magnification range, from 20x to 200x, allowing you to focus on your target with ease. Benefit from advanced features such as scroll lock, extensive measurement functions, calibration, and micro touch to enhance your imaging experience.



Share

Unlock Limitless Microscope Possibilities with 200x Range Magnification

Experience unmatched precision and convenience with the Dino-Lite AM4113-FI2T. Boasting a 200x magnification range and professional, calibratable measurement tools, this powerful microscope makes it easy to document and share your findings. The bundled software further streamlines the process, giving you the freedom to focus on your research.

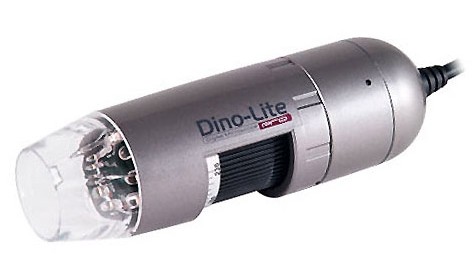

Dino-Lite AM4113-FI2T

Features

Enhanced 1.3 Megapixels

Observes object with accurate color reproductions and retains details under low lighting with the optimum resolution for detailed live previews and captured images.

USB 2.0

Digital microscopes allow easy recording and sharing of observations in the office or out in the field with a compatible PC or MAC.

Scroll Lock

The scroll lock ensures the focus knob stays at the desired focus or magnification position without worry of unintentional movement.

MicroTouch Shutter Button

The MicroTouch feature gives users the option of taking a picture right from the scope itself and was designed to minimize image blur while taking a picture with the microscope. Great for those moments when you need to take a picture but have no access to the computer.


Specification

ModelAM4113-FI2T Dino-Lite Premier
InterfaceUSB 2.0
Product Resolution1.3M pixels (SXGA)
Magnification Rate20x~50x, 200x
SensorColor CMOS
Frame RateUp to 30fps
Save FormatImage:
DinoCapture 2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
DinoXcope: PNG, JPEGMovie:
DinoCapture2.0: WMV, FLV, SWF
DinoXcope: MOV
Lighting8 Infrared (940nm) LED lights switched on/off by software
MicrotouchTouch-sensitive trigger on the microscope for taking pictures
Operating System SupportedWindows XP 7/8/10/11
macOS 10.14 or later
Calibration FunctionYes
Measurement FunctionYes
Unit Dimension10.5cm (H) x 3.2cm (D)
Package Dimension16cm (L) x 16cm (w) x 6cm (H)
Unit Weight100g

Information About Working Distance and Field of View

MWDFOV (x)FOV (y)
2051.725.120.1
3024.116.813.4
401112.610.1
503.810.18.0
60-0.68.46.7
200-0.42.52.0
2100.62.41.9
2201.72.31.8
2302.82.21.7

M = magnification rate      WD = working distance      FOV = field of view      DOF= depth of field      Unit = mm
