Get accurate and detailed images of the iris with the Dino-Lite AM4113-RUT IriScope. With a magnification range of 10x to 20x, you can easily detect eye conditions like irritation, dirt, insects, or foreign objects that may be present. The IriScope is compact, easy to use, and a valuable tool for any medical practice. With a resolution of up to 1.3 megapixels and built-in LED lights that offer white and yellow options, you can expect sharp and clear images every time.



Share

Unlock the Power of Accurate Eye Diagnosis with Dino-Lite AM4113-RUT IriScope

See more, know more with the Dino-Lite AM4113-RUT IriScope, which offers a new, fast, and easy way to make pictures of eyes. The AM4113-RUT with built-in LED lights (white and yellow) provides clear and comfortable illumination, making it the perfect tool for any medical practice.

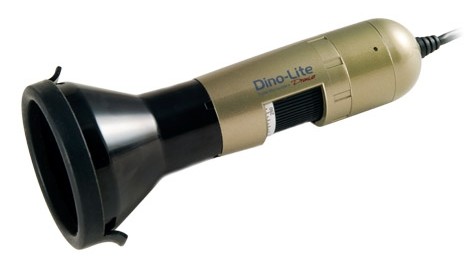

Dino-Lite AM4113-RUT

Features

Enhanced 1.3 Megapixels

Observes object with accurate color reproductions and retains details under low lighting with the optimum resolution for detailed live previews and captured images.

USB 2.0

Digital microscopes allow easy recording and sharing of observations in the office or out in the field with a compatible PC or MAC.

Scroll Lock

The scroll lock ensures the focus knob stays at the desired focus or magnification position without worry of unintentional movement.


Specification

ModelAM4113-RUT Dino-Lite Premier
InterfaceUSB 2.0
Product Resolution1.3M pixels (SXGA)
Magnification Rate10x~20x
SensorColor CMOS
Frame RateUp to 30fps
Save FormatImage:
DinoCapture 2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
DinoXcope: PNG, JPEGMovie:
DinoCapture2.0: WMV, FLV, SWF
DinoXcope: MOV
Lighting2 white + 2 yellow LED lights switched on/off by the software
MicrotouchTouch-sensitive trigger on the microscope for taking pictures
Operating System SupportedWindows XP 7/8/10/11
macOS 10.14 or later
Unit Dimension10.5cm (H) x 3.2cm (D)
Package Dimension16cm (L) x 16cm (w) x 6cm (H)
Unit Weight105g

Information About Working Distance and Field of View

MWDFOV (x)FOV (y)
2048.719.615.6
3021.713.010.4
409.09.87.8
501.97.86.3
60-2.36.55.2
220-0.11.81.4
2301.01.71.4
2402.11.61.3

M = magnification rate      WD = working distance      FOV = field of view      DOF= depth of field      Unit = mm
