The AM7515MT8A is a top-of-the-line 5MP microscope in the Dino-Lite Edge Series that provides outstanding image quality at 700x~900x magnifications. With its built-in coaxial illumination and Flexible LED Control (FLC), users can easily switch between brightfield and coaxial illumination for optimal visibility. The microscope comes bundled with the user-friendly DinoCapture 2.0 software for Windows, which includes a range of functions, such as Automatic Magnification Reading (AMR), calibration, measurement, image capture, and video recording. Overall, the AM7515MT8A is an excellent choice for professionals seeking a high-performance microscope with versatile illumination options and a range of advanced features.



Share

The Right Inspection Tool for Material Analysis and Electronics Inspection

Bring hidden details to light with the Dino-Lite AM7515MT8A – ideal for material analysis and electronics inspection. With the advanced coaxial illumination technique, this device unveils even the most challenging details with ease, making it the ultimate inspection tool for professionals.

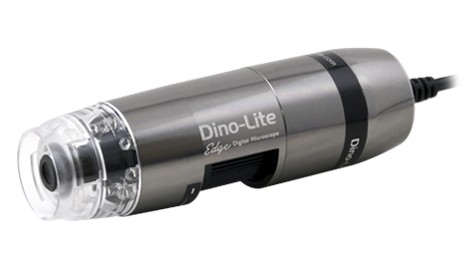

Digital Microscope AM7515MT8A Dino-Lite Edge

Features

5.0 Megapixels

An unmatched 5.0 Megapixels sensor, allows for the transmission of a sharp image with a resolution of up to 2592×1944 without compression.

USB 2.0

Digital microscopes allow easy recording and sharing of observations in the office or out in the field with a compatible PC or MAC.

Brightfield/Darkfield

With built-in brightfield and darkfield illumination, users have more flexibility to view targets under different types of lighting configurations.

Flexible LED Control (FLC)

Provides lighting adjustment options including intensity settings to the four LED quadrants, as well as the aim point laser and the ability to turn on or off LED by quadrant.

FLC

Automatic Magnification Reading (AMR)

Automatic Magnification Reading displays the current magnification on the screen with the included software for Windows or Mac OS. AMR features remove the hassle of stopping your work to check the magnification before performing a measurement.

Scroll Lock

The scroll lock ensures the focus knob stays at the desired focus or magnification position without worry of unintentional movement.

Interchangeable Front Caps

The interchangeable front caps are designed to be used with Dino-Lite Edge and EdgePLUS series models. The caps provide additional versatility to Dino-Lite digital microscope applications.

N3C-C / Close Cap

This cap protects the lens and LED lights from dust, debris, or moisture.

N3C-E / Extended Open Cap (12.5mm length)

This 12.5mm cap eases finding and holding a fixed focus when using the Dino-Lite in handheld mode. This cap is compatible with standard and wide-field-of-view models.

N3C-O / Open Cap (9.5mm length)

This 9.5mm cap eases finding and holding a fixed focus when using the Dino-Lite in handheld mode.

Specification

ModelAM7515MT8A Dino-Lite Edge
InterfaceUSB 2.0
Product Resolution5.0M pixels (2592×1944)
Magnification Rate700x~900x
Frame Rate10fps in 5MP/3MP/2MP, MJPEG
25fps in 1.3MP, MJPEG
30fps in VGA, MJPEG
Save FormatsImage:
DinoCapture2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
DinoXcope: PNG, JPEG
Video:
DinoCapture2.0: WMV, FLV, SWF
DinoXcope: MOV
Lighting8 White LEDs
MicrotouchYes
Operating System SupportedWindows 7/8/10/11
macOS 10.14 or later
System Requirements‧ Intel Core2 Duo @ 2.20 GHz/AMD Athlon X2 Dual Core BE-2400 (2.3GHz)
‧ 20GB available HD space
‧ 2GB available RAM or more
‧ 512MB video card or more
‧ CD-ROM drive for installation
‧ USB 2.0
Calibration FunctionYes
Measurement FunctionYes
Unit Dimension10.7cm (H) x 3.2cm (D)
Unit Weight139g

Information About Working Distance and Field of View

MWDFOV (x)FOV (y)DOF
7006.40.560.4000.01
7506.30.520.3750.01
8006.10.480.3500.009
8506.00.460.3300.008
9005.90.430.3150.008

M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field      Unit = mm
