Experience unmatched convenience with the Dino-Lite Edge AM4115-FJT digital microscope. With a 940nm infrared LED lighting and 1.3 Megapixels resolution, the Dino-Lite Edge AM4115-FJT offers unparalleled image quality. The ability to magnify objects at various levels, with a maximum magnification of 220X, makes it an ideal tool for a range of applications. And with the DinoCapture software, capturing images and videos has never been easier – just a few clicks away. The full version of the software even includes measurement and calibration features for precise work.

SKU AM4115-FJT Categories Calibration, 220x, Interchangeable Caps, MicroTouch, Measurement, USB, INTERFACE, 1.3 Megapixels, Magnification, Infrared, Resolution, LED, FEATURES

Description

Discover Unmatched Detail of the Objects

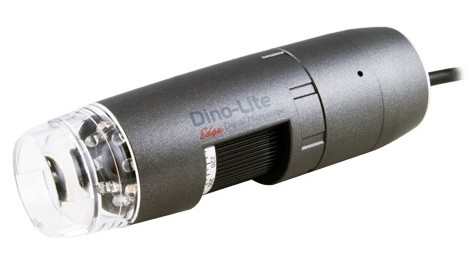

Name: Digital Microscope USB Dino-Lite AM4115-FJT
SKU: AM4115-FJT
Price: 805 SGD
Availability: InStock

Experience superb image quality with a cutting-edge lens design that guarantees stunning sharpness and minimizes aberration and vignetting even at the highest magnifications with the AM4115-FJT digital microscope. Invest in a tool that delivers reliable, high-quality results every time.

USB 2.0

1.3 Megapixel

20x~220x

8 Infrared (940nm) LED

Features

MicroTouch Shutter Button

With the touch-sensitive button, users can quickly switch between photo and video and capture the perfect shot with a single tap.

Adaptable Cap Design

Provide superior image quality and a high level of flexibility due to the adaptable cap design, also remove the front cap provides greater working distance and access to the full magnification range.

	N3C-C / Close Cap This cap protects the lens and LED lights from contamination by dust, debris, or moisture.
	N3C-E / Extended Open Cap (12.5mm length) This 12.5mm cap eases the task of finding and holding a fixed focus when using the Dino-Lite in handheld mode. This cap is compatible with standard and wide-field-of-view models.
	N3C-L / Long Cap (30mm length) This cap assists users to find focus quickly at low magnification when it touches the surface.
	N3C-O / Open Cap (9.5mm length) This 9.5mm cap eases the task of finding and holding a fixed focus when using the Dino-Lite in handheld mode.

Specification

Model	AM4115-FJT Dino-Lite Edge
Interface	USB 2.0
Product Resolution	1.3M pixels (SXGA)
Magnification Rate	20x~220x
Sensor	Color CMOS
Frame Rate	Up to 30fps
Save Formats	Image: DinoCapture 2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM DinoXcope: PNG, JPEGMovie: DinoCapture 2.0: WMV, FLV, SWF DinoXcope: MOV
Lighting	8 Infrared (940nm) LED lights switch on/off by software
Microtouch	Touch-sensitive trigger on the microscope for taking pictures
Operating System Supported	Windows XP 7/8/10/11 macOS 10.14 or later
Calibration Function	Yes
Measurement Function	Yes
Unit Dimension	10.5cm (H) x 3.2cm (D)
Package Dimension	16cm (L) x 16cm (W) x 6cm (H)
Unit Weight	100g

Information About Working Distance and Field of View

M	WD	FOV (x)	FOV (y)	DOF
20	60.2	19.5	15.6	2.5
30	33.5	13	10.4	1.8
40	20.9	9.8	7.8	1.5
50	13.9	7.8	6.3
60	9.7	6.5	5.2
70	7.1	5.6	4.5	1.0
80	5.5	4.9	3.9
90	4.5	4.3	3.5
100	4.1	3.9	3.1
110	4	3.6	2.8
120	4.1	3.3	2.6
130	4.5	3	2.4
140	5	2.8	2.2
150	5.6	2.6	2.1
160	6.3	2.4	2
170	7.1	2.3	1.8
180	8	2.2	1.7
190	8.9	2.1	1.6
200	9.9	2	1.6
210	10.9	1.9	1.5
220	11.9	1.8	1.4	0.1
