The Dino-Lite EdgePLUS AM4117MT-G2FBW high-sensitivity digital microscope, a perfect combination of 465 excitation light and a 510-545nm emission bandpass filter range is the best solution for the observations of samples with green fluorescence.


Switchable Light Source

The Dino-Lite EdgePLUS AM4117MT-G2FBW has the capability of switching the light source from excitation lights to a single white LED which provides the convenience of locating and focusing on the object (the image will remain tinted the color of the emission filter). Switch back to the main lighting for capturing fluorescent objects.

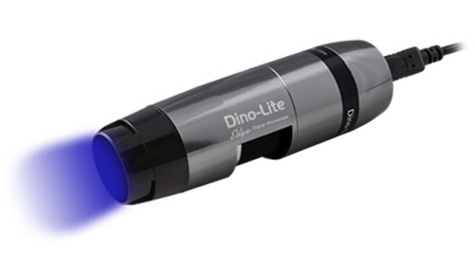

Dino-Lite AM4117MT-G2FBW

Features

Green Fluorescence

The 510-545nm emission bandpass filter blocks all non-green spectral emissions and selectively isolates the green spectral regions for unobstructed observations of green fluorescence emissions.

Excitation and Emission Spectra

Adjustable LED Intensity

The LED intensity could be adjusted within six levels for providing further illumination flexibility.

Scroll Lock

The scroll lock ensures the focus knob stays at the desired focus or magnification position without worry of unintentional movement.

Interchangeable Front Caps

The interchangeable front caps are designed to be used with Dino-Lite Edge and EdgePLUS series models. The caps provide additional versatility to Dino-Lite digital microscope applications.

N3C-C / Close Cap

This cap protects the lens and LED lights from contamination by dust, debris, or moisture.

N3C-E / Extended Open Cap (12.5mm length)

This 12.5mm cap eases the task of finding and holding a fixed focus when using the Dino-Lite in handheld mode. This cap is compatible with standard and wide-field-of-view models.

N3C-LB / Long Cap

This black cap blocks ambient light for clearer observations of fluorescence emissions at low magnification.

N3C-OB / Open Cap

This black cap blocks ambient light for clearer observations of fluorescence emissions.

Specification

Model AM4117MT-G2FBW Dino-Lite  EdgePLUS
Interface USB 2.0
Product Resolution 1.3M pixels (1280×960)
Magnification 20x~220x
Frame Rate 30fps in 1.3MP, MJPEG
30fps in VGA, MJPEG
Saving Format Image:
DinoCapture 2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
DinoXcope: PNG, JPEGVideo:
DinoCapture 2.0: WMV, FLV, SWF
DinoXcope: MOV
Lighting 7 Blue LEDs

1 White LED

Microtouch Yes
Operating System Supported Windows 7/8/10/11
macOS 10.14 or later
Calibration Function Yes
Measurement Function Yes
Unit Dimension 10.5cm (H) x 3.3cm (D)
Unit Weight 90g

Information About Working Distance and Field of View

M WD FOV (x) FOV (y) DOF
20 59.5 19.5 14.7 5.36
30 32.9 13.0 9.8 2.58
40 20.2 9.8 7.3 1.56
50 13.2 7.8 5.9 1.07
60 9 6.5 4.9 0.79
70 6.4 5.6 4.2 0.62
80 4.8 4.9 3.7 0.5
90 4 4.3 3.3 0.42
100 3.5 3.9 2.9 0.36
110 3.3 3.6 2.7 0.31
120 3.5 3.3 2.4 0.27
130 3.8 3.0 2.3 0.24
140 4.3 2.8 2.1 0.22
150 4.9 2.6 2.0 0.2
160 5.6 2.4 1.8 0.18
170 6.4 2.3 1.7 0.17
180 7.3 2.2 1.6 0.15
190 8.2 2.1 1.5 0.14
200 9.2 2.0 1.5 0.13
210 10.2 1.9 1.4 0.13
220 11.3 1.8 1.3 0.12

M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field      Unit = mm
