Discover new details with the Dino-Lite Edge AM4115-FUT digital microscope. With powerful UV LED lighting around the 375 nm spectrum and high-sensitivity 1.3 Megapixels optics, this microscope is ideal for professionals seeking superior image quality. The adaptable cap design offers increased flexibility, making it easy to adjust the microscope to your needs. Get closer to your objects and see the details with the Dino-Lite Edge AM4115-FUT.



Share

Discover the Power of Professional Inspection with the AM4115-FUT Dino-Lite Edge

Upgrade your professional inspections with the AM4115-FUT Dino-Lite Edge. With exceptional image quality combined with 375nm UV lighting, this cutting-edge device is designed to meet the most demanding professional needs. Make the smart choice for your inspection toolkit and get the AM4115-FUT Dino-Lite Edge today.

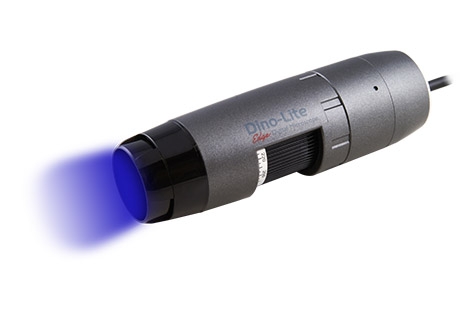

Dino-Lite AM4115-FUT

Features

MicroTouch Shutter Button

The MicroTouch feature gives users the option of taking a picture right from the scope itself and was designed to minimize image blur while taking a picture with the microscope. Great for those moments when you need to take a picture but have no access to the computer.

Adaptable Cap Design

Provide superior image quality and a high level of flexibility due to the adaptable cap design, also remove the front cap provides greater working distance and access to the full magnification range.

N3C-C / Close Cap

This cap protects the lens and LED lights from dust, debris, or moisture.

N3C-E / Extended Open Cap (12.5mm length)

This 12.5mm cap eases finding and holding a fixed focus when using the Dino-Lite in handheld mode. This cap is compatible with standard and wide-field-of-view models.

N3C-L / Long Cap (30mm length)

This cap assists users to find focus quickly at low magnification when it touches the surface.

N3C-OB / Open Cap

This black cap blocks ambient light for clearer observations of fluorescence emissions.

N3C-S / Sidelight Cap

Use the sidelight cap to light from the side for highlighting the texture and depth of targets at short working distances.

Specification

ModelAM4115-FUT Dino-Lite Edge
InterfaceUSB 2.0
Product Resolution1.3M pixels (SXGA)
Magnification Rate20x~220x
SensorColor CMOS
Frame RateUp to 30fps
Save FormatImage:
DinoCapture 2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
DinoXcope: PNG, JPEGMovie:
DinoCapture 2.0: WMV, FLV, SWF
DinoXcope: MOV
Lighting4 UV (375nm) LED lights switch on/off by software
MicrotouchTouch-sensitive trigger on the microscope for taking pictures
Operating System SupportedWindows XP 7/8/10/11
macOS 10.14 or later
Calibration FunctionYes
Measurement FunctionYes
Unit Dimension10.5cm (H) x 3.2cm (D)
Package Dimension16cm (L) x 16cm (W) x 6cm (H)
Unit Weight100g

Information About Working Distance and Field of View

MWDFOV (x)FOV (y)DOF
2060.219.515.62.5
3033.51310.41.8
4020.99.87.81.5
5013.97.86.3
609.76.55.2
707.15.64.51.0
805.54.93.9
904.54.33.5
1004.13.93.1
11043.62.8
1204.13.32.6
1304.532.4
14052.82.2
1505.62.62.1
1606.32.42
1707.12.31.8
18082.21.7
1908.92.11.6
2009.921.6
21010.91.91.5
22011.91.81.40.1

M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field      Unit = mm
