Dino-Lite Edge AM4115ZTF is a digital microscope designed for tasks requiring long-distance from the target with 10x~70x range magnification, with high-quality images.


Get the Power of Long-Range Observations with the AM4115ZTF Digital Microscope

Enjoy the versatility of the AM4115ZTF digital microscope that can capture detailed images with high quality, perfect for industrial inspections and analysis that required long distances.

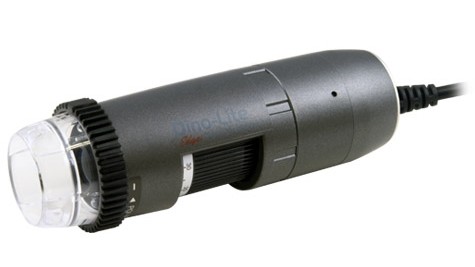

Dino-Lite AM4115ZTF

Features

​Extra-Long Working Distance (ELWD)

The Extra-Long Working Distance feature is specially designed to provide enough space for assembly inspection, machine, or other applications require long distances.

Adjustable Polarizer

Polarization can be switched on/off or adjusted to allow full or half polarization to control glare and helps to reveal more detail or to enhance the contrast on the surface by reducing or eliminating the reflections.

Scroll Lock

The scroll lock ensures the focus knob stays at the desired focus or magnification position without worry of unintentional movement.

Interchangeable Front Caps

The interchangeable front caps are designed to be used with Dino-Lite Edge and EdgePLUS series models. The caps provide additional versatility to Dino-Lite digital microscope applications.

N3C-C / Close Cap

This cap protects the lens and LED lights from contamination by dust, debris, or moisture.

N3C-E / Extended Open Cap (12.5mm length)

This 12.5mm cap eases the task of finding and holding a fixed focus when using the Dino-Lite in handheld mode. This cap is compatible with standard and wide-field-of-view models.

N3C-O / Open Cap (9.5mm length)

This 9.5mm cap eases the task of finding and holding a fixed focus when using the Dino-Lite in handheld mode.

Specification

Model AM4115ZTF Dino-Lite Edge
Interface USB 2.0
Product Resolution 1.3M pixels (SXGA)
Magnification 10x~70x
Frame Rate Up to 30fps
Sensor Color CMOS
Save Formats Image:
DinoCapture 2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
DinoXcope: PNG, JPEGMovie:
DinoCapture 2.0: WMV, FLV, SWF
DinoXcope: MOV
Microtouch Yes
Lighting 8 White LED
Operating System Supported Windows XP 7/8/10/11
macOS 10.14 or later
Calibration Function Yes
Measurement Function Yes
Unit Dimension 10.4cm (H) x 3.2cm (D)
Unit Weight 104g

Information About Working Distance and Field of View

M WD FOV (x) FOV (y) DOF
10 503 39.1 31.3 31.49
20 271 19.5 15.6 8.67
30 196 13.0 10.4 4.20
40 159 9.8 7.8 2.56
50 135 7.8 6.3 1.76
60 120 6.5 5.2 1.31
70 108 5.6 4.5 1.03

M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field      Unit = mm
