The Dino-Lite Premier AD4113TL-MA1 is a digital microscope that is perfect for those who need a tool with a long working distance. Its front cover can be changed and comes with transparent, closed, and angle mirrored caps, making it adaptable to various applications. With an enhanced 1.3-megapixel sensor, this microscope allows you to see more detail even in low-light conditions, while the DinoCapture 2.0 or DinoXcope software makes capturing images and videos effortless. The microscope’s precise measurements and calibration capabilities make it an essential tool for any professional who requires accuracy and versatility in their work. The Dino-Lite Premier AD4113TL-MA1 is an excellent option for those who need a high-quality digital microscope that is both easy to use.



Share

Upgrade Your Digital Microscope: Long Working Distance, Versatile Adaptability

The Dino-Lite Premier AD4113TL-MA1 is an ideal choice for professionals seeking a digital microscope with a long working distance. With the ability to switch between transparent, closed, and angle mirrored caps, you can adapt to different work environments with ease.

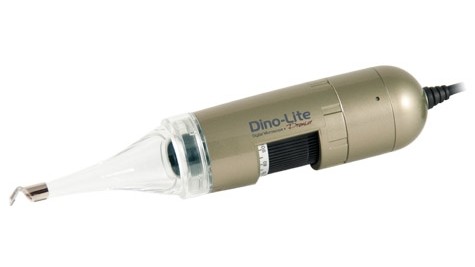

Digital Microscope AD4113TL-MA1 Dino-Lite Premier

Features

USB 2.0

Digital microscopes allow easy recording and sharing of observations in the office or out in the field with a compatible PC or MAC.

Long Working Distance

The Long Working Distance feature provides more working space between the object and the microscope, ideal for applications such as repair or assembly.

Scroll Lock

The scroll lock ensures the focus knob stays at the desired focus or magnification position without worry of unintentional movement.

Interchangeable Front Caps

The AD series have a variety of interchangeable front caps that can allow you to adapt the Dino-Lite to special applications.

FC-L-CC2FC-OC1FC-L-MA1

Closed transparent front cap

Standard open front cap

Mirror angle front cap

Specification

ModelAD4113TL-MA1 Dino-Lite Premier
InterfaceUSB 2.0
Product Resolution1.3M pixels (SXGA)
Magnification Rate20x~90x
SensorColor CMOS
Frame RateUp to 30fps
Save FormatsImage:
DinoCapture 2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
DinoXcope: PNG, JPEGVideo:
DinoCapture2.0: WMV, FLV, SWF
DinoXcope: MOV
Lighting8 white LEDs
MicrotouchTouch-sensitive trigger on the microscope for taking pictures
Measurement FunctionYes
Calibration FunctionYes
Operating System SupportedWindows XP 7/8/10/11
macOS 10.14 or later
Unit Dimension10.5cm (H) x 3.2cm (D)
Unit Weight105g
Package Dimension16cm(L) x 16cm(W) x 6cm(H)
