The Dino-Lite Premier AM4013MZTL is the perfect solution for professionals in need of a high-quality digital microscope. With an enhanced 1.3 Megapixels sensor and crystal clear image quality, you can view and capture objects with the greatest level of detail. The DinoCapture 2.0 software for Windows and DinoXcope software for MacOS allows you to make calibrated measurements on pictures taken with the Dino-Lite. The durable aluminum housing is both stylish and protective, while the built-in adjustable polarizer reduces glare and reflection on shiny objects. The long working distance makes this model ideal for use with high-glare materials such as plastics and metals.

A Perfect Tool For Long Working Distance Requires

The AM4013MZTL digital handheld microscope provides the ultimate digital microscope experience. A perfect tool for users who require high magnification at a distance and the ability to reduce glare from highly reflective objects.

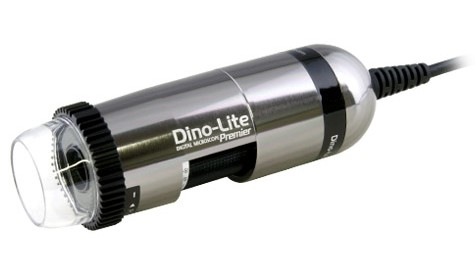

Dino-Lite AM4013MZTL


Enhanced 1.3 Megapixels

Observes object with accurate color reproductions and retains details under low lighting with the optimum resolution for detailed live previews and captured images.

USB 2.0 Interface

Digital microscopes allow easy recording and sharing of observations in the office or out in the field with a compatible PC or MAC.

Long Working Distance

The Long Working Distance feature provides more working space between the object and the microscope, ideal for applications such as repair or assembly.

Adjustable Polarizer

Polarization can be switched on/off or adjusted to allow full or half polarization to control glare and helps to reveal more detail or to enhance the contrast on the surface by reducing or eliminating the reflections.

MicroTouch Shutter Button

The MicroTouch feature gives users the option of taking a picture right from the scope itself and was designed to minimize image blur while taking a picture with the microscope. Great for those moments when you need to take a picture but have no access to the computer.


Model AM4013MZTL Dino-Lite Premier
Interface USB 2.0
Product Resolution 1.3M pixels (SXGA)
Magnification Rate 20x~90x
Sensor Color CMOS
Frame Rate Up to 30fps
Save Format Image:
DinoXcope: PNG, JPEGMovie:
DinoCapture2.0: WMV, FLV, SWF
DinoXcope: MOV
Lighting 8 white LED lights switched on/off by the software
Microtouch Touch-sensitive trigger on the microscope for taking pictures
Operating System Supported Windows XP 7/8/10/11
macOS 10.14 or later
Calibration Function Yes
Measurement Function Yes
Polarizer Yes
Unit Dimension 10.5cm (H) x 3.2cm (D)
Package Dimension 21.5cm (L) x 18cm (w) x 7cm (H)
Unit Weight 140g

Information About Working Distance and Field of View

M WD FOV (x) FOV (y)
20 151.0 19.6 15.6
30 101.0 13.0 10.4
40 77.2 9.8 7.8
50 64.1 7.8 6.3
60 56.2 6.5 5.2
70 51.3 5.6 4.5
80 48.3 4.9 3.9
90 46.6 4.3 3.5

M = magnification rate      WD = working distance      FOV = field of view      DOF= depth of field      Unit = mm
