The Dino-Lite Premier AM4013MZT4 is equipped with a high-quality enhanced 1.3 Megapixels sensor with a crystal clear image quality and natural color reproduction, enabling you to view and capture objects with the greatest level of detail. This model comes with the DinoCapture 2.0 software for Windows and DinoXcope software for MacOS, allowing you to do calibrated measurements on pictures taken with the Dino-Lite. The aluminum housing offers enhanced protection and durability and has the best look and feel.



Share

Ability To Reveal The Smallest Details On All Kinds Of Objects

The Dino-Lite Premier AM4013MZT4 with a high magnification of 400x~470x reveals even the smallest details on all kinds of objects. And also supported switchable polarizer makes the AM4013MZT4 the right choice for working with high-glare materials such as jewelry, plastics, and metals.

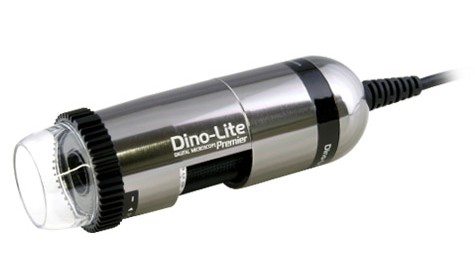

Dino-Lite AM4013MZT4

Features

Enhanced 1.3 Megapixels

Observes object with accurate color reproductions and retains details under low lighting with the optimum resolution for detailed live previews and captured images.

USB 2.0 Interface

Digital microscopes allow easy recording and sharing of observations in the office or out in the field with a compatible PC or MAC.

Adjustable Polarizer

Polarization can be switched on/off or adjusted to allow full or half polarization to control glare and helps to reveal more detail or to enhance the contrast on the surface by reducing or eliminating the reflections.


Specification

ModelAM4013MZT4 Dino-Lite Premier
InterfaceUSB 2.0
Product Resolution1.3M pixels (SXGA)
Magnification Rate430x~470x
SensorColor CMOS
Frame RateUp to 30fps
Save FormatImage:
DinoCapture 2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
DinoXcope: PNG, JPEG

Movie:
DinoCapture2.0: WMV, FLV, SWF
DinoXcope: MOV

Lighting8 white LED lights switched on/off by the software
MicrotouchTouch-sensitive trigger on the microscope for taking pictures
Operating System SupportedWindows XP 7/8/10/11
macOS 10.14 or later
Calibration FunctionYes
Measurement FunctionYes
PolarizerYes
Unit Dimension10.5cm (H) x 3.2cm (D)
Package Dimension21.5cm (L) x 18cm (w) x 7cm (H)
Unit Weight105g

Information About Working Distance and Field of View

MWDFOV (x)FOV (y)
430-0.450.910.73
4400.40.890.71
4501.350.870.7
4602.30.850.68
4703.150.830.67

M = magnification rate      WD = working distance      FOV = field of view      DOF= depth of field      Unit = mm
