Discover your observation with Dino-Lite AF4515TL-FVW Dual LED Digital Microscope. With a 1.3MP sensor and dual light source (white and 395nm UV fluorescent LEDs), this digital microscope offers exceptional detail and versatility. Enjoy the flexibility of switching between white and ultraviolet light and adjusting lighting intensity with the Flexible Lighting Control. The longer working distance is ideal for applications that require more space between the object and the microscope. The Wireless-Ready design makes it easy to convert to wireless with the WF-20 adaptor. Get the accuracy and precision you need with Dino-Lite AF4515TL-FVW Dual LED Digital Microscope.


See the Unseen with Dino-Lite Edge AF4515TL-FVW Dual LED Digital Microscope: With Longer Working Distance

Experience ultimate usefulness and accuracy in your observations with the Dino-lite AF4515TL-FVW digital microscope. This advanced device offers a long working distance and dual light source of both white LED and 395nm UV fluorescent lights, allowing you to examine your targets with different wavelengths.

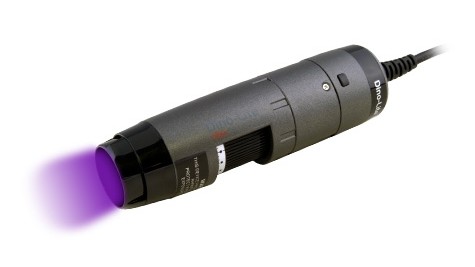

Digital Microscope AF4515TL-FVW Dino-Lite Edge

Features

Dual Light Source

Easy to switch between white light and UV light switchable by software.

Long Working Distance

The Long Working Distance feature provides more working space between the object and the microscope, ideal for applications such as repair or assembly.

Adaptable Interface

The adaptable interface provides the flexibility to transform Dino-Lite into a wireless microscope when attached to the WF-20 Wi-Fi streamer.

Adjustable LED Intensity

The LED intensity could be adjusted within six levels for providing further illumination flexibility.

Automatic Magnification Reading (AMR)

Automatic Magnification Reading displays the current magnification on the screen with the included software for Windows or Mac OS. AMR features remove the hassle of stopping your work to check the magnification before performing a measurement.

amr-1

Scroll Lock

The scroll lock ensures the focus knob stays at the desired focus or magnification position without worry of unintentional movement.

Interchangeable Front Caps

The interchangeable front caps are designed to be used with Dino-Lite Edge and EdgePLUS series models. The caps provide additional versatility to Dino-Lite digital microscope applications.

N3C-C / Close Cap

This cap protects the lens and LED lights from dust, debris, or moisture.

N3C-D / Diffuser Cap

This is a translucent cap that partially softens the LED light.

N3C-D2 / Opal Diffuser Cap

This cap softens and evenly distributes the LED light.

N3C-E / Extended Open Cap (12.5mm length)

This 12.5mm cap eases finding and holding a fixed focus when using the Dino-Lite in handheld mode. This cap is compatible with standard and wide-field-of-view models.

N3C-L / Long Cap (30mm length)

This cap assists users to find focus quickly at low magnification when it touches the surface.

N3C-OB / Open Cap

This black cap blocks ambient light for clearer observations of fluorescence emissions.

N3C-S / Sidelight Cap

Use the sidelight cap to light from the side for highlighting the texture and depth of targets at short working distances.

Specification

Model AF4515TL-FVW Dino-Lite Edge
Interface USB 2.0
Product Resolution 1.3M pixels (1280X1024)
Magnification Rate 10x~140x
Frame Rate 15fps in 1.3MP, MJPEG
30fps in VGA, MJPEG
Save Formats Image:
DinoCapture 2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
DinoXcope: PNG, JPEGMovie:
DinoCapture2.0: WMV, FLV, SWF
DinoXcope: MOV
Lighting 4 White and 4 UV (395nm) LED lights switched by software
Microtouch Yes
Operating System Supported Windows XP 7/8/10/11
macOS 10.14 or later
Calibration Function Yes
Measurement Function Yes
Unit Dimension 11.4cm (H) x 3.3cm (D)
Unit Weight 111g

Information About Working Distance and Field of View

M WD FOV (x) FOV (y) DOF
10 234.5 39.0 31.2 12
20 112.5 19.5 15.6 4.5
30 72.5 13.0 10.4 3.1
40 54.5 9.8 7.8 1.8
50 43.5 7.8 6.2 1.2
60 37.5 6.5 5.2 0.9
70 33.7 5.6 4.5 0.6
80 31.3 4.9 3.9 0.5
90 29.9 4.3 3.5 0.37
100 29.2 3.9 3.1 0.28
110 29.1 3.5 2.8 0.22
120 29.3 3.3 2.6 0.17
130 29.8 3.0 2.4 0.12
140 30.5 2.8 2.2 0.09

M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field      Unit = mm
