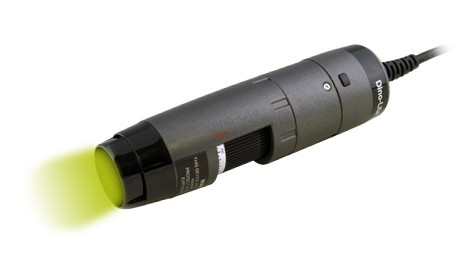

Digital Microscope AF4115T-GRFBY Dino-Lite Edge

The Dino-Lite Edge AF4115T-GRFBY digital microscope is designed for research and viewing fluorescent objects with high clarity. This microscope features two sets of switchable LED lights, 4 Blue LEDs with excitation at 480nm and 4 Yellow LEDs with excitation at 575nm, and emission at 510nm/610nm. With magnification up to 220x, this handheld microscope provides exceptional views of green fluorescent objects, making their green glow stand out. It’s an ideal tool for those who require high-resolution imaging of fluorescent specimens.

SKU AF4115T-GRFBY Categories Adjustable LED Intensity, Blue, Yellow, MicroTouch, Adaptable Interface, Calibration, 220x, Scroll Lock, Interchangeable Caps, Measurement, USB, 1.3 Megapixels, INTERFACE, Magnification, Resolution, LED, FEATURES

Description

Dual-Excitation Fluorescence Viewing

Name: Digital Microscope USB Dino-Lite AF4115T-GRFBY
SKU: AF4115T-GRFBY
Price: 1260 SGD
Availability: InStock

Detect dual-color fluorescence with the Dino-Lite AF4115T-GRFBY: a switchable light source for enhanced observations.

USB 2.0

1.3 Megapixel

20x~220x

4 Blue LEDs & 4 Yellow LEDs

Features

Adaptable Interface

The adaptable interface provides the flexibility to transform Dino-Lite into a wireless microscope when attached to the WF-20 Wi-Fi streamer.

Adjustable LED Intensity

The LED intensity could be adjusted within six levels for providing further illumination flexibility.

Scroll Lock

The scroll lock ensures the focus knob stays at the desired focus or magnification position without worry of unintentional movement.

Interchangeable Front Caps

The interchangeable front caps are designed to be used with Dino-Lite Edge and EdgePLUS series models. The caps provide additional versatility to Dino-Lite digital microscope applications.

	N3C-C / Close Cap This cap protects the lens and LED lights from dust, debris, or moisture.
	N3C-E / Extended Open Cap (12.5mm length) This 12.5mm cap eases finding and holding a fixed focus when using the Dino-Lite in handheld mode. This cap is compatible with standard and wide-field-of-view models.
	N3C-LB / Long Cap This black cap blocks ambient light for clearer observations of fluorescence emissions at low magnification.
	N3C-OB / Open Cap This black cap blocks ambient light for clearer observations of fluorescence emissions.

Specification

Model	AF4115T-GRFBY Dino-Lite Edge
Interface	USB 2.0
Product Resolution	1.3M pixels (1280×1024)
Magnification Rate	20x~220x
Frame Rate	15fps in 1.3MP, MJPEG 30fps in VGA, MJPEG
Save Formats	Image: DinoCapture 2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM DinoXcope: PNG, JPEGVideo: DinoCapture2.0: WMV, FLV, SWF DinoXcope: MOV
Lighting	4 Blue LEDs and 4 Yellow LEDs
Microtouch	Yes
Operating System Supported	Windows XP 7/8/10/11 macOS 10.14 or later
Calibration Function	Yes
Measurement Function	Yes
Unit Dimension	11.4cm (H) x 3.3cm (D)
Unit Weight	111g

Information About Working Distance and Field of View

M	WD	FOV (x)	FOV (y)	DOF
20	60.2	19.5	15.6	2.5
30	33.5	13	10.4	1.8
40	20.9	9.8	7.8	1.5
50	13.9	7.8	6.3
60	9.7	6.5	5.2
70	7.1	5.6	4.5	1.0
80	5.5	4.9	3.9
90	4.5	4.3	3.5
100	4.1	3.9	3.1
110	4	3.6	2.8
120	4.1	3.3	2.6
130	4.5	3	2.4
140	5	2.8	2.2
150	5.6	2.6	2.1
160	6.3	2.4	2
170	7.1	2.3	1.8
180	8	2.2	1.7
190	8.9	2.1	1.6
200	9.9	2	1.6
210	10.9	1.9	1.5
220	11.9	1.8	1.4	0.1
