Discover the Dino-Lite EDGE AM4115T-RFYW offering you one of the world’s smallest fluorescence microscopes for observe red fluorescence such as RFP. It makes research no longer expensive or delicate like used traditional fluorescence microscope. Simply changing the way you use a fluorescence microscope with its small form factor and high sensitivity to low light.

SKU AM4115T-RFYW Categories Calibration, 220x, Interchangeable Caps, Yellow, MicroTouch, USB, White, Measurement, INTERFACE, 1.3 Megapixels, Magnification, Resolution, LED, FEATURES

Description

The World’s Smallest Fluorescence Microscope for Accurate and Affordable Research

Name: Digital Microscope USB Dino-Lite AM4115T-RFYW
SKU: AM4115T-RFYW
Price: 1140 SGD
Availability: InStock

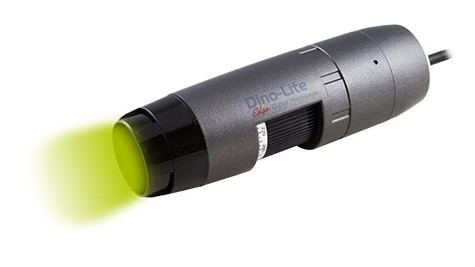

The Dino-Lite AM4115T-RFYW packs a punch with its precise observation capabilities for Red Fluorescence, all in a compact design. Equipped with dual LED lighting, you’ll be able to see your samples in stunning detail.

USB 2.0

1.3 Megapixel

20x~220x

7 Yellow LEDs & 1 White LED

Features

USB 2.0 Interface

Digital microscopes allow easy recording and sharing of observations in the office or out in the field with a compatible PC or MAC.

Interchangeable Front Caps

The interchangeable front caps are designed to be used with Dino-Lite Edge and EdgePLUS series models. The caps provide additional versatility to Dino-Lite digital microscope applications.

	N3C-C / Close Cap This cap protects the lens and LED lights from dust, debris, or moisture.
	N3C-E / Extended Open Cap (12.5mm length) This 12.5mm cap eases finding and holding a fixed focus when using the Dino-Lite in handheld mode. This cap is compatible with standard and wide-field-of-view models.
	N3C-LB / Long Cap This black cap blocks ambient light for clearer observations of fluorescence emissions at low magnification.
	N3C-OB / Open Cap This black cap blocks ambient light for clearer observations of fluorescence emissions.

Specification

Model	AM4115T-RFYW Dino-Lite Edge
Interface	USB 2.0
Product Resolution	1.3M pixels (SXGA)
Magnification Rate	20x~220x
Sensor	Color CMOS
Frame Rate	Up to 30fps
Save Formats	Image: DinoCapture 2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM DinoXcope: PNG, JPEGMovie: DinoCapture2.0: WMV, FLV, SWF DinoXcope: MOV
Lighting	Using 7 Yellow LEDs for excitation lighting and has a 610nm emission filter/1 White LED switched by software
Microtouch	Touch-sensitive trigger on the microscope for taking pictures
Operating System Supported	Windows XP 7/8/10/11 macOS 10.14 or later
Calibration Function	Yes
Measurement Function	Yes
Unit Dimension	10.5cm (H) x 3.2cm (D)
Package Dimension	16cm (L) x 16cm (w) x 6cm (H)
Unit Weight	100g

Information About Working Distance and Field of View

M	WD	FOV (x)	FOV (y)	DOF
20	60.2	19.5	15.6	1.52
30	33.5	13	10.4
40	20.9	9.8	7.8
50	13.9	7.8	6.3	0.3
60	9.7	6.5	5.2
70	7.1	5.6	4.5
80	5.5	4.9	3.9
90	4.5	4.3	3.5
100	4.1	3.9	3.1
110	4	3.6	2.8
120	4.1	3.3	2.6
130	4.5	3	2.4
140	5	2.8	2.2
150	5.6	2.6	2.1
160	6.3	2.4	2
170	7.1	2.3	1.8
180	8	2.2	1.7
190	8.9	2.1	1.6
200	9.9	2	1.6	0.04
210	10.9	1.9	1.5
220	11.9	1.8	1.4
