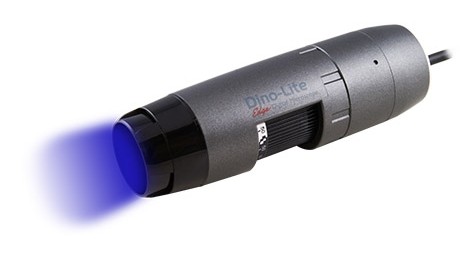

The Dino-Lite AM4115TW-GFBW digital microscope is designed specifically for research and viewing fluorescent objects. Equipped with 480nm LEDs and a 510nm emission filter, this device is optimized for observing green fluorescence in life-size objects such as biological samples like mice, leaves, and zebrafish. Whether you’re a researcher or just need a closer look at fluorescent objects, the Dino-Lite AM4115TW-GFBW has everything you need to get the job done.



Share

Optimized for Green Observation

Get a better view of green fluorescent objects with the Dino-Lite AM4115TW-GFBW. This digital microscope is designed with superior optics that make green fluorescence pop under the microscope. You’ll be able to see the green glow clearly and easily. The AM4115TW-GFBW also offers added convenience with the ability to switch the light source from the 480nm excitation LEDs to the white LED, making it easier to locate the object and get a clear focus.

Dino-Lite AM4115TW-GFBW

Features

PC/MAC Compatibility

Get experience with easy recording and sharing of observations in the office or in the field with a compatible PC or MAC with a USB 2.0 port. Conveniently capture and modify photos with the bundled software.

Field-Of-View (FOV) and Depth-Of-Field (DOF)

With its large field-of-view (FOV) and depth-of-field (DOF) features, appropriate range of working distances, and 10x to 50x magnification range, this model is ideal for macro-view fluorescence applications.

Zoomable with Long Working Distance

While maintain the same working distance, further rotation of the magnification dial will focus on a higher magnification range and thereby effectively zoom into the target.

MicroTouch Shutter Button

The MicroTouch feature gives users the option of taking a picture right from the scope itself and was designed to minimize image blur while taking a picture with the microscope. Great for those moments when you need to take a picture but have no access to the computer.

Interchangeable Front Caps

The interchangeable front caps are designed to be used with Dino-Lite Edge and EdgePLUS series models. The caps provide additional versatility to Dino-Lite digital microscope applications.

N3C-C / Close Cap

This cap protects the lens and LED lights from dust, debris, or moisture.

N3C-E / Extended Open Cap (12.5mm length)

This 12.5mm cap eases finding and holding a fixed focus when using the Dino-Lite in handheld mode. This cap is compatible with standard and wide-field-of-view models.

N3C-LB / Long Cap

This black cap blocks ambient light for clearer observations of fluorescence emissions at low magnification.

N3C-OB / Open Cap

This black cap blocks ambient light for clearer observations of fluorescence emissions.

Specification

ModelAM4115TW-GFBW Dino-Lite  Edge
InterfaceUSB 2.0
Product Resolution1.3M pixels (SXGA)
Magnification Rate10x~50x
SensorColor CMOS
Frame RateUp to 30fps
Save FormatsImage:
DinoCapture 2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
DinoXcope: PNG, JPEGMovie:
DinoCapture2.0: WMV, FLV, SWF
DinoXcope: MOV
Lighting7 Blue LEDs (510nm) & 1 white LED switched by software
MicrotouchTouch-sensitive shutter button on the microscope for taking pictures
Operating System SupportedWindows XP 7/8/10/11
macOS 10.14 or later
Calibration FunctionYes
Measurement FunctionYes
Unit Dimension10.5cm (H) x 3.2cm (D)
Package Dimension16cm (L) x 16cm (w) x 6cm (H)
Unit Weight100g

Information About Working Distance and Field of View

T Zone
MWDFOV (x)FOV (y)DOF
5014973
40421195
306415129
20119231921
15182302439



W Zone
MWDFOV (x)FOV (y)DOF
301114116
2025252013
1539312522
1068413351
51569878250

M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field      Unit = mm
