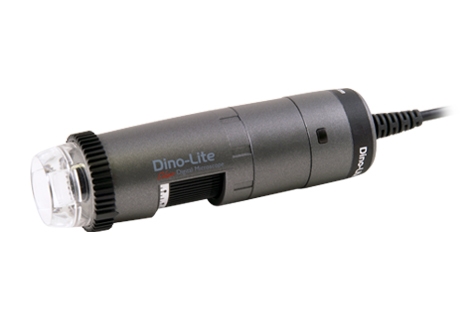

Dino-Lite AF4535ZTLE – Long Working Distance Digital Microscope for Precision, Clarity, and Versatility

The Long Working Distance feature provides more working space between the object and the microscope, ideal for applications such as repair or assembly.

The adaptable interface provides the flexibility to transform Dino-Lite into a wireless microscope when attached to the WF-20 Wi-Fi streamer.

The LED intensity could be adjusted within six levels for providing further illumination flexibility.

Automatic Magnification Reading displays the current magnification on the screen with the included software for Windows or Mac OS. AMR features remove the hassle of stopping your work to check the magnification before performing a measurement.

The scroll lock ensures the focus knob stays at the desired focus or magnification position without worry of unintentional movement.

The interchangeable front caps are designed to be used with Dino-Lite Edge and EdgePLUS series models. The caps provide additional versatility to Dino-Lite digital microscope applications.

N3C-C / Close Cap This cap protects the lens and LED lights from dust, debris, or moisture. N3C-D / Diffuser Cap This is a translucent cap that partially softens the LED light. N3C-D2 / Opal Diffuser Cap This cap softens and evenly distributes the LED light. N3C-E / Extended Open Cap (12.5mm length) This 12.5mm cap eases finding and holding a fixed focus when using the Dino-Lite in handheld mode. This cap is compatible with standard and wide-field-of-view models. N3C-L / Long Cap (30mm length) This cap assists users to find focus quickly at low magnification when it touches the surface. N3C-OB / Open Cap This black cap blocks ambient light for clearer observations of fluorescence emissions. N3C-S / Sidelight Cap Use the sidelight cap to light from the side for highlighting the texture and depth of targets at short working distances.
